Converters

 Blackmagic Design Battery Converter HDMI to SDI



Convert an HDMI input to SDI output. Convert HDMI camera outputs to SDI for longer cable lengths and professional connectivity on location. Includes SD/HD auto switching and features dual SDI outputs. Includes a built-in lithium-ion polymer rechargeable battery and external power supply.

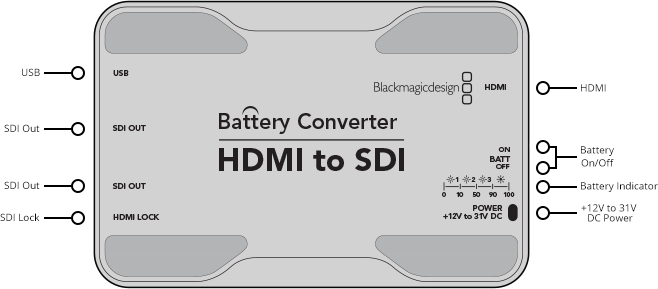

BlackMagic HDMI-SDI Diagram

Connections

SDI Video Output: 2x SD/HD-SDI outputs automatically match the SD/HD video input.

HDMI
HDMI type A in.

Multi Rate Support
Auto detection of HD or standard definition HDMI inputs.

Power Requirements

Power Supply

Integrated Lithium-ion Polymer rechargeable battery. 12V-31V DC port for external battery power or use included 12V AC adapter with international socket adapters for all countries. Cable tie point.

Battery Information

Over 2 hours battery life. Battery charge indicator with On/Off switch to preserve battery life.

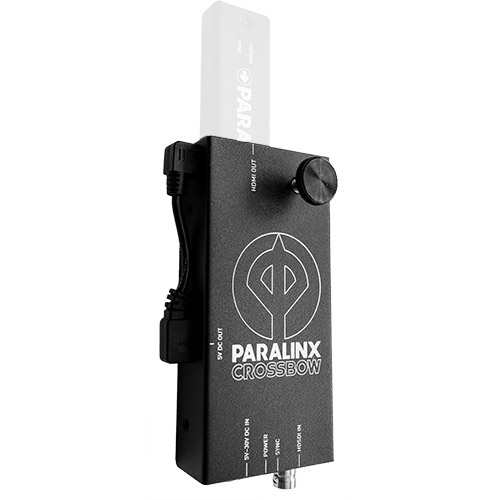

Paralinx Crossbow  SDI to HDMIParalinx crossbow

The Paralinx Crossbow is an HD-SDI module to be used in conjunction with the Paralinx Arrow or Arrow Plus transmitter. The Crossbow converts an HD-SDI input signal to HDMI output and both the cross-converter and the Arrow/Plus transmitter (not included) draw power through the built-in Regulator.
