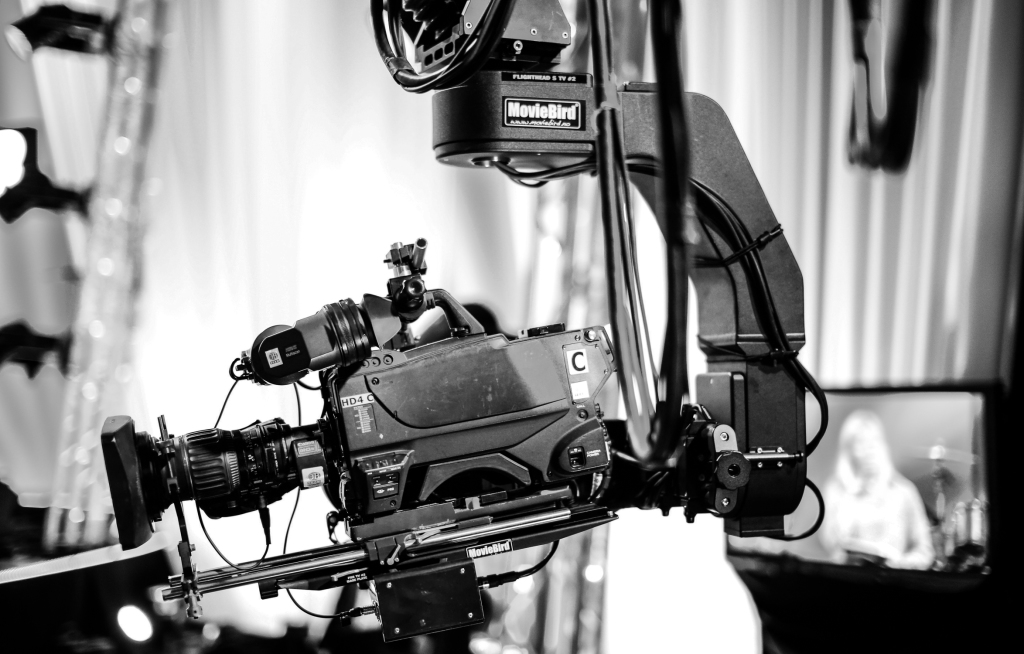

Flighthead 5 TV


This new 3 axis Flighthead is based on the same technology as the legendary Flighthead 5. This head was developed for the 2014 winter olympics in Sochi, and is especially designed for television marked and is perfect to use on Telescopic cranes, remote rails, tracking dolly.

It is a 3 axis head witch is one of the lightest, strongest, and best heads available on the marked, and we are proud to have 2 of these heads in stock.


SPECIFICATIONS:

  • Setup time 30- 40 minFH TV
  • Lenght 76cm
  • Width 30cm
  • Height 80cm
  • Pan range 360 ° continuos
  • Roll Range +100 °;250 ° Automatic Horizon Level
  • Tilt Range +80 °;165 °
  • Pan Speed,Roll Speed, Tilt Speed 160 °/sec
  • Temperature range from -30 °C up to +40 °С
  • Weight 18kg
  • Payload capacity up to 19kg

POWER:

  • 24-30 VDC
  • 2 Amps Standby
  • 15 Amps Din..Max
