Shock absorbers

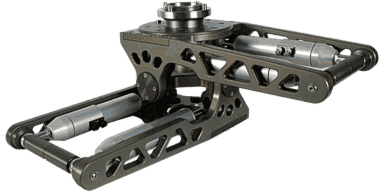

Iso Dampener



The Iso Dampener increases the efficiency of gyro stabilized heads by reducing rotational stress and smoothening out pan starts and stops on telescopic and fixed arm cranes by isolating high frequency vibrations between the mount and head. The Iso Dampener is mounted with a Mitchell connection to the crane or Mini and Maxi Shock Absorber, allowing individual adjustment and tuning, to best suit the choice of stabilized head as well as the shooting environment.

Features

  • Weight:iso-dampener
    9.1 kg / 20 lbs
  • Payload:
    85 kg / 189 lbs
  • Temperature range:
    -20° to +50° Celsius
    -4° to +122° Fahrenheit
  • Dimensions (L x W x H):
    42 x 42 x 22 cm
    16″ x 16″ x 8″
  • Mounting:
    Mitchell to Mitchell

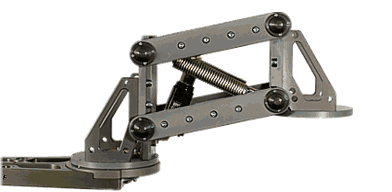

The Mini Shock Absorber

The Mini Shock Absorber is for use with gyro stabilized heads to reduce high & low frequency vibrations and semi-hard impact shocks during high speed chases and rough crane moves. The best results are achieved when used with the Iso Dampener. It connects to Mitchell plates and can mount either under or over slung as well as allowing the stabilized head to mount under or over slung.

Features

  • Weight:mini-shock-absorber
    8.5 kg / 18 lbs
  • Max. Payload:
    56 kg / 123 lbs
  • Temperature range:
    -20° to +50° Celsius
    -4° to +122° Fahrenheit
  • Dimensions (L x W x H):
    54 x 21 x 50 cm
    21″ x 8″ x 19″

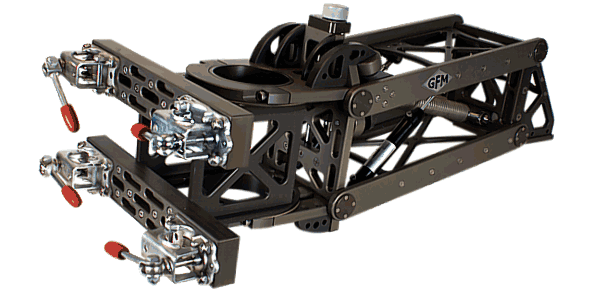

Maxi Shock Absorber



The Maxi Shock Absorber is for use with gyro stabilized heads to reduce high & low frequency vibrations and hard impact shocks during high speed chases on rough and bumpy terrain.
It connects to 48mm scaffold tube or 150mm pole system and has a 180° horizontal adjustment range. The front Mitchell mount can be set for top mounting or underslung use of the stabilized head.

The best results are achieved when used with the Iso-Dampener. The Maxi Shock Absorber allows for individual adjustment and setting, depending on the choice of stabilized head and taking into consideration the terrain of the shooting environment.

maxi-shock-absorber

Features

  • Weight:
    41 kg / 90 lbs
  • Max. Payload:
    100 kg / 220 lbs
  • Temperature range:
    -20° to +50° Celsius
    -4° to +122° Fahrenheit
  • Dimensions (L x W x H):
    103 x 26 x 40 cm
    40″ x 10″ x 15″
