Flighthead 5 (upgrade)

The Flight Head V’s unique 3 axis gyro-stabilized design eliminates all bumps & vibrations resulting in an extremely smooth and stable picture (10 – 500mm film lenses). The Flight Head V (FHV) provides complete control of the camera and lens functions. The FHV is operated via joystick or hand wheels. Besides its specific role with the Russian Arm the Flight Head V is the perfect head for: Techno Cranes, Shock Absorber, Camera Cars, Chase Cars, Boats, Remote Dollies etc.

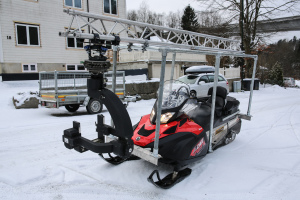

The Flight Head handles cameras up to 40 kg. It has been used in Norway under extreme weather conditions both on the North Cape and on the rough coastline of West Norway – both on shore and offshore on small fishing boats, vessels and in flight. We even mounted it on a snow scooter! Steady as a rock.

We have experienced technicians with great knowledge from ”on set” problem solving during both snow, rain and windy conditions.

SpecificationsFH5 Speedcar - Gatebil
3 Axis Gyro-Stabilized.
Back-pan compensation.
RF Wireless capability.
Digital Auto Horizon always keeps camera level even in hi G turns.
Auto Horizon can be turned off for greater control of Roll Axis.
Pan axis travels through 360° with back-pan compensation.
Roll axis travels through 270° with auto horizon.
Tilt Axis travels through 200°.
Pan Speed, Roll Speed, Tilt Speed 160 °/ sec.
Preston FIZ plugs into head console to give Zoom control on the left joy stick.
Payload capacity up to 40 kg.
Light Weight only 24 kg.
Temperature range from -40 °C up to +40 °С.
Mounts to standard Mitchell base.

Power Requirements
24-30 VDC
2 Amps Standby
15 Amps Din. Max.
