Black-Tek Tower

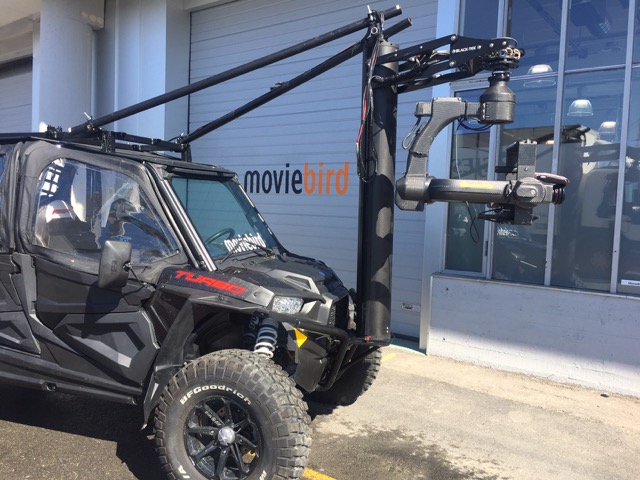

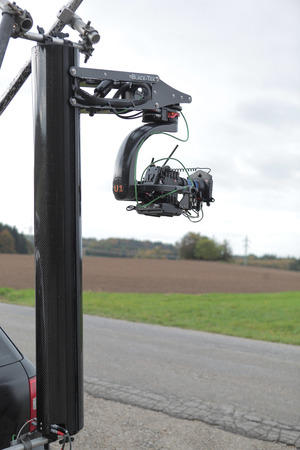

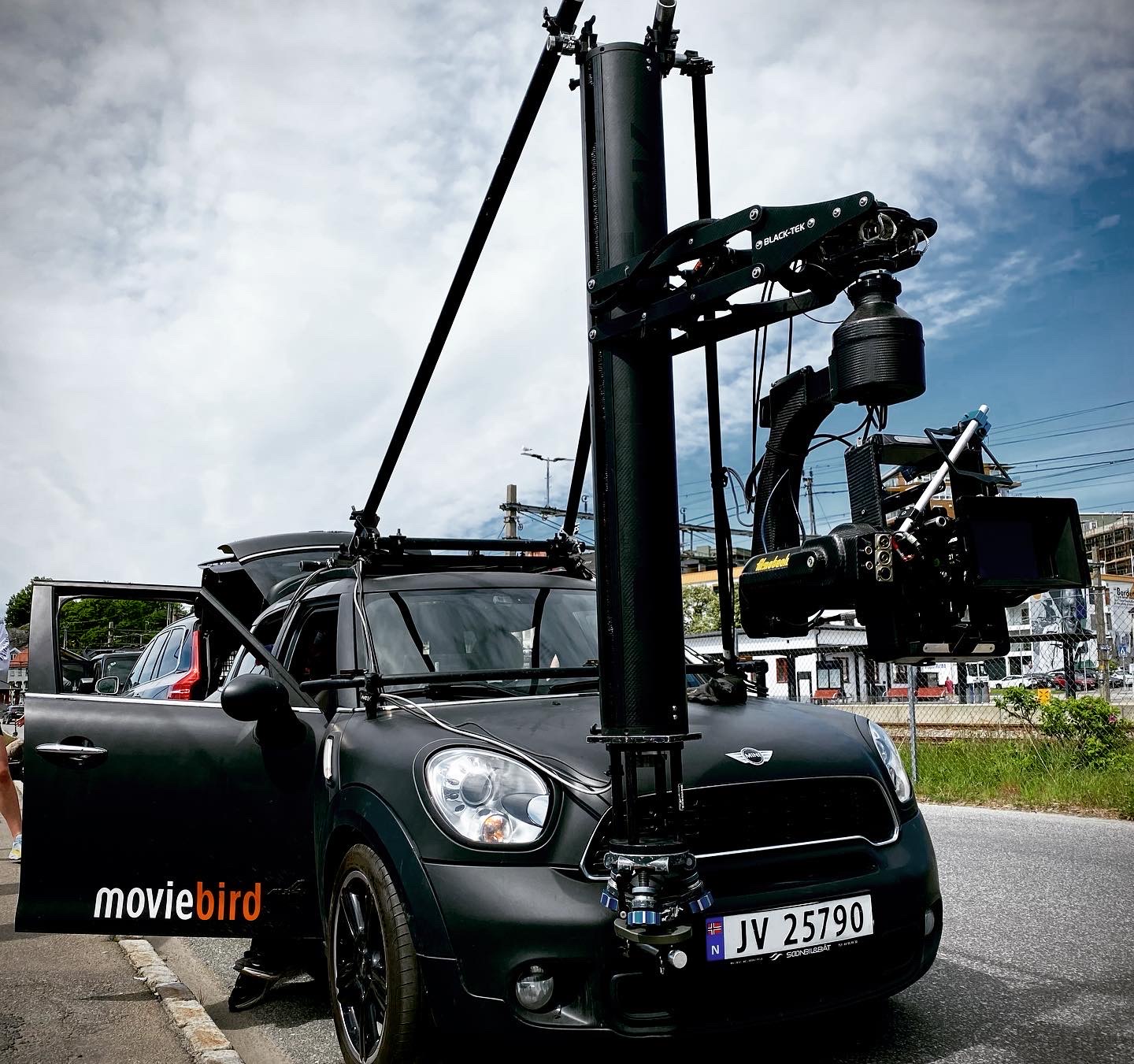

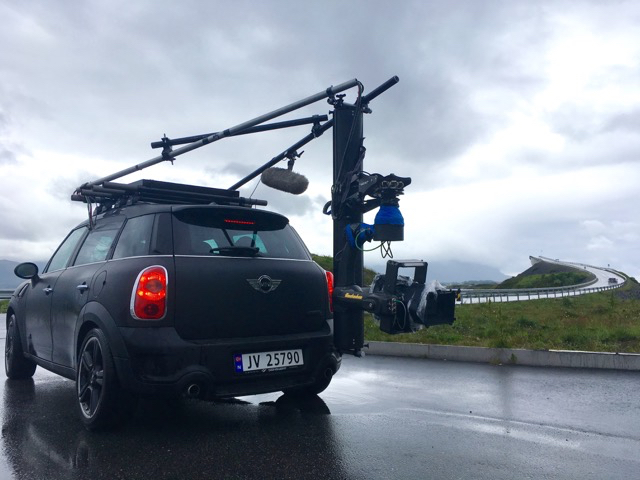

The Tower is a vertical Lifter for small Remoteheads like the Flighthead Mini / Shotover G1. It can be mounted on any vehicle or even be used stationary. It is optimized for HighSpeed use on SpeedCars.

  • Total weight of Tower & Shockabsorber: 28 kg
  • Maximum payload of the AbsorberArm: 20 kg
  • 1,6 m Height / 1,3 m Traveldistance
  • Variable Speed up to 0,8 m/s (about 2 sec for 130 cm)
  • Manually rotatable position in 45 deg steps by simply pulling the quick release pins in the twister plates
  • A cablechain inside the Tower guides the command, power and video cable for the remotehead
  • Internal weight balancing system helps to reduce power consumption
  • Mitchellplate as base on the shock-absorber
  • A heavy duty transportation bag protects the Tower
  • Wired remote control for selecting speed and position
  • Can be mounted on 33mm CarRig pipes
  • Powered from 24V up to 48 V
  • Can be used as a motorized horizontal slider
