70KW Linear Flashlight – Lightning Strikes

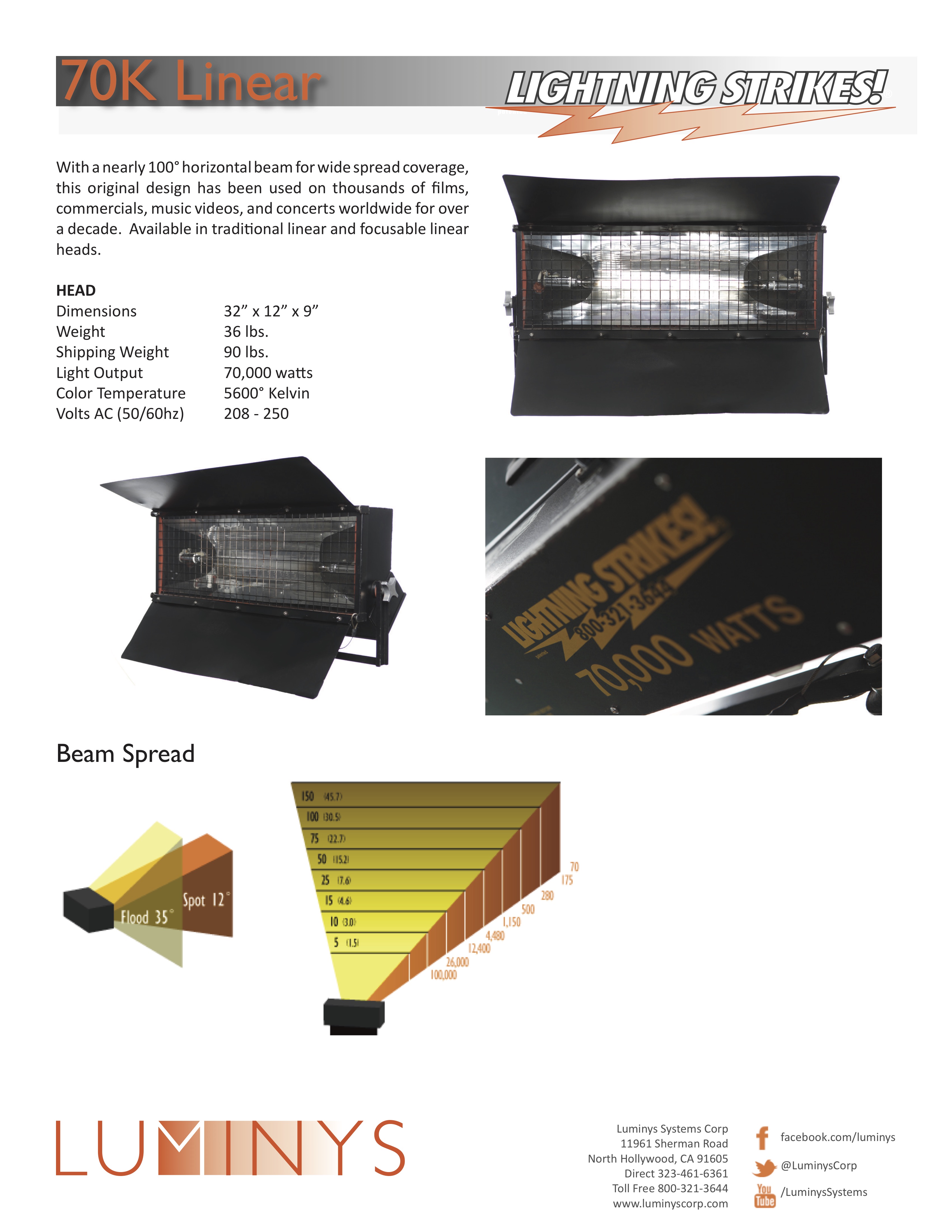

70K Linear Lightning Strikes

Dimensions 32” x 12” x 9” (81 x 30 x 23 cm)
Weight 34 lbs. (15kg)
Shipping Weight 90 lbs. (41kg)
Light Output 70,000 watts
Color Temperature 5600º Kelvin
Volts AC (50/60hz) 208-250 VAC
Current (Momentary) 300 Amps
House or Mains Rating 63 Amps Minimum
Generator Rating @ 120V 350 Amps (40kW)

Photometric Data in Foot Candles:
Vertical Beam Angle – 34º
Horizontal Beam Angle – 92º

15ft         25ft      50ft     75ft     100ft    150ft      200ft
4,320    1,580    400     169       96        42          24

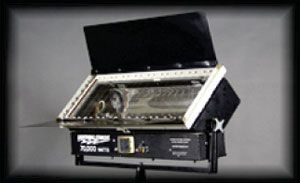

70K Focusable Lightning Strikes:
Dimensions 32” x 12” x 9” (81 x 30 x 23 cm)
Weight 36 lbs. (15kg)
Shipping Weight 90 lbs. (41kg)
Light Output 70,000 watts
Color Temperature 5600º Kelvin
Volts AC (50/60hz) 208-250 VAC
Current (Momentary) 300 Amps
House or Mains Rating 63 Amps Minimum
Generator Rating @ 120V 350 Amps (40kW)

Photometric Data in Foot Candles
*Calculated for Spot configuration only
Vertical Beam Angle (Spot) – 12º (Flood) – 35º
Horizontal Beam Angle – 100º

15ft           25ft        50ft        75ft      100ft       150ft      200ft
12,400     4,480     1,150      500       280        125         70@
