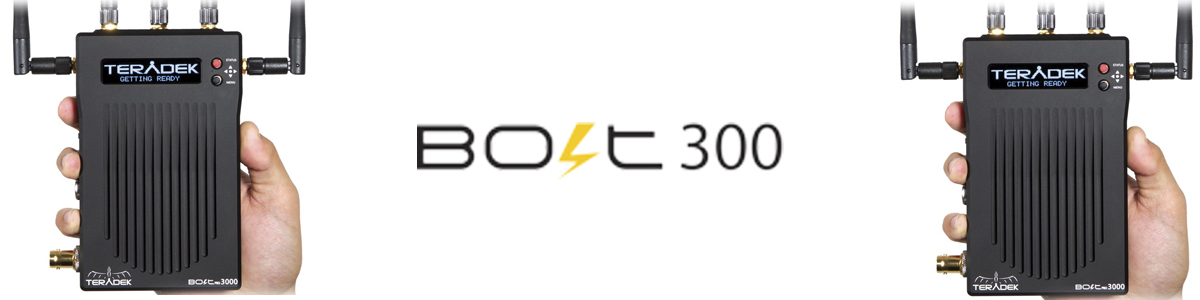

Teradek Bolt PRO 300

The Teradek Bolt Pro 300 Wireless HD-SDI/HDMI Dual Format Video Transmitter/Receiver Set features internal antennas and offers a fan-less receiver that includes a USB 3.0 output, which allows you to ingest video directly into your computer or DIT cart with ease. This model supports metadata and timecode pass through. It supports wireless HD video with zero delay (<1ms), up to a 300 ft range, and up to 4 receivers. The transmitter accepts either HD-SDI or HDMI input, and the receiver outputs both HD-SDI and HDMI.

Transmit uncompressed 1080p video wirelessly over 300 feet with the Teradek Bolt Pro 300 3G-SDI Wireless Transmitter-Receiver Set. Included in this set are a Teradek Bolt 300 transmitter and receiver both equipped with 3G-SDI ports. The units in this kit are compact and feature internal antennas so they can fit on your camera rig and in your video village, DIT cart, or director’s monitor rig.

When transmitting uncompressed video, latencies of less than one millisecond can be achieved if no other video processing is necessary. Unnoticeable latency is important for directors and focus pullers to see the action at the same time the camera does.

A boon for DITs, the USB GRAB engine streams the uncompressed video straight out of the receiver and into a PC for immediate recording. With this video available, rough edits can be made even before the footage is offloaded from the camera.

Bolt 300 3G-SDI Wireless Video Transmitter

  • The Teradek Bolt 300 3G-SDI Wireless Video Transmitter accepts SDI signals and can transmit them to a Bolt 300 Receiver up to 300 feet away in optimal line-of-sight situations. The Bolt system supports uncompressed video resolutions up to 1080p at 60 fps with 4:2:2 chroma subsampling. Because the Bolt system uses the 5 GHz wavelength, it does not require FCC licensing. Included with this transmitter is a shoe adapter to mount the unit to a camera’s standard accessory shoe and a D-tap to LEMO power cable so you can power the unit with an onboard battery with a D-tap output.



Bolt 300 3G-SDI Wireless Video Receiver

  • The Teradek Bolt 300 3G-SDI Wireless Video Receiver accepts video transmissions from a Bolt 300 transmitter up to 300 feet away in optimal line-of-sight situations. The Bolt system supports uncompressed video resolutions up to 1080p at 60 fps with 4:2:2 chroma subsampling. Because the Bolt system uses the 5 GHz wavelength, it does not require FCC licensing. Aside from being able to output video via 3G-SDI, the USB 3.0 port can stream the uncompressed video directly to a PC for recording with the GRAB Engine. Included with this transmitter is a 1/4″-20 thumb screw to mount the unit to a video rig and a 1/2″-20 adapter to secure the unit to a small light stand.
Input / Output Transmitter: HD-SDI and HDMI input
Receiver: HD-SDI, HDMI, and USB 3.0 output
Transmission Range 300 ft (91 m)
